Air Core Solenoid Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11602
The

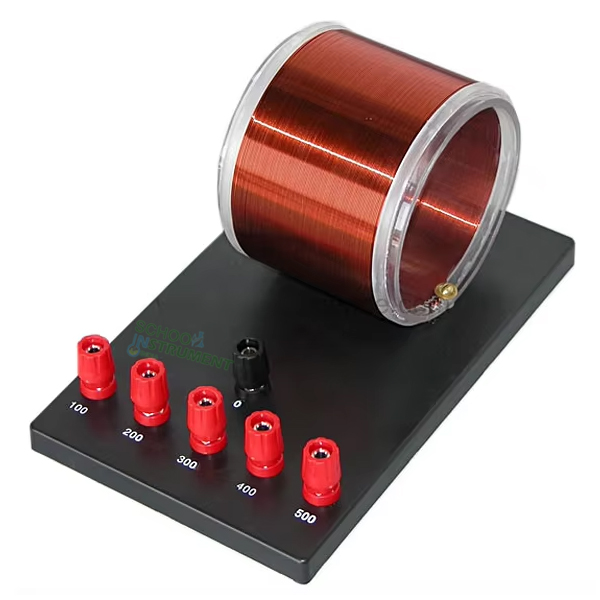

Air Core Solenoid is a precision electromagnetic induction apparatus designed
for quantitative analysis of magnetic field strength relative to coil density and
current. Optimized for University and Secondary physics laboratories, it facilitates
empirical verification of Ampère's Law. This School Instrument adheres to ASTM
electrical safety standards and is rated for high-frequency instructional use.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Transparency Acrylic
Former; Insulated Copper Windings |
|
Coil Dimensions |
Diameter: 9.0 cm; Length: 4.0
cm |
|
Chassis Dimensions |
Width: 12 cm; Depth: 20 cm;
Height: 11 cm |
|
Winding Configuration |
500 Total Turns (Tappings at
100, 200, 300, 400, 500) |
|
Electrical Profile |
Total Resistance: 20? (4? per 100-turn segment) |
|
Current Capacity |
1.5A Maximum (Single segment) |
Key Pedagogical Outcomes
· 90mm
Clear Acrylic Former: Analyzing Internal Magnetic Flux. Facilitates the "Analysis" of field behavior
by allowing students to position Hall Effect probes or current balances within
the uniform field of the coil core.
· Five
Discrete Red Binding Post Tappings: Evaluating. Enables learners to "Evaluate" the linear
relationship between the number of turns and magnetic flux density while
maintaining constant physical parameters.
· 1.5A
Current Rating per Segment: Applying Lorentz Force Equations. Supports the "Application" of the current
balance experiment to calculate force vectors acting on a conductor within the
solenoid's field.
· Segmented Resistance (4? per 100 Turns): Understanding Circuit Dynamics. Allows learners to "Understand" Ohm's Law and heat dissipation in resistive loads when integrating the coil into 6VDC or 12VDC power systems.
International Logistics & Compliance
To satisfy the requirements of international procurement
officers and global educational tenders, the Air Core Solenoid is secured in
export-grade seaworthy crating (ISPM-15 compliant). Documentation includes the
Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ Certification, and
technical User Manuals in English. The apparatus features a tropicalized
design; the acrylic is UV-stabilized and the copper windings are coated with
high-temperature enamel, batch-tested for operational integrity in environments
up to 45°C and 90% non-condensing humidity.
