Hand Vacuum Pump Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11591

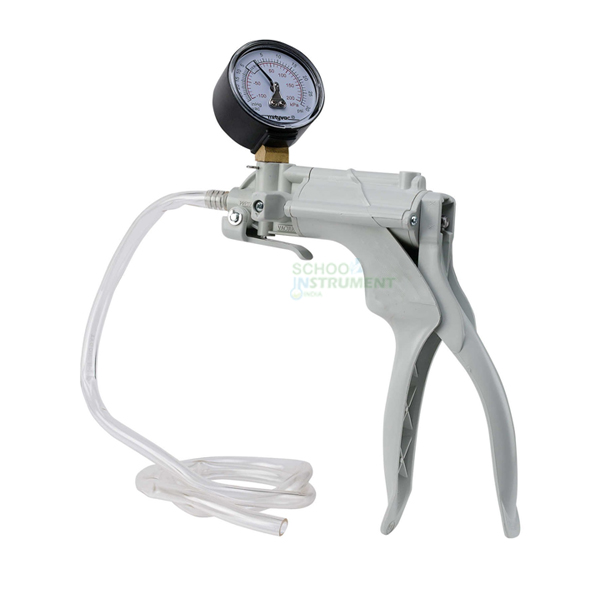

The Hand Vacuum
Pump is a ruggedized, manual displacement apparatus engineered for the creation
of positive and negative pressure environments in general laboratory settings.
Designed for Secondary and Vocational curricula, it provides a 15ml stroke volume
for achieving vacuums of 15mm Hg or air pressures of 2 atm. It complies with
ASTM laboratory hardware safety standards for non-precision pneumatic
applications.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Impact Industrial
Polymer; Elastic Release Valve |
|
Displacement Volume |
Approximately 15 ml per
compression stroke |
|
Vacuum Capacity |
15 mm Hg |
|
Pressure Capacity |
Approximately 2 atm (Standard
Atmosphere) |
|
Monitoring Interface |
Integrated Analog
Pressure/Vacuum Gauge |
|
Release Mechanism |
Removable Cap with Elastic
Valve for Rapid Vacuum Release |
Key Pedagogical Outcomes
· Integrated
Pressure/Vacuum Gauge: Analyzing Gas Laws.
Facilitates the "Analysis" of Boyle’s Law by providing real-time
visual feedback of pressure changes relative to volume within a closed system.
· Dual-Action
Porting (Vacuum and Pressure): Evaluating Pneumatic Systems. Allows students to "Evaluate" the mechanical
differences between suction and compression, supporting Vocational Mechanics.
· Rapid
Elastic Release Valve: Applying Atmospheric Equilibrium Protocols. Supports the "Application" of safe pressure
equalization techniques without requiring the disconnection of the primary
vacuum line.
· 15ml
Displacement Cylinder: Understanding Displacement and Flow Rate. Enables learners to "Understand" volumetric
flow and the cumulative effects of mechanical displacement on system pressure.
International Logistics & Compliance
To satisfy the requirements of international procurement
officers and global educational tenders, the Hand Vacuum Pump is secured in
export-grade seaworthy crating (ISPM-15 compliant). Documentation provided
includes the Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ
Certification, and technical activity guides in English. The pump assembly features
a tropicalized design, utilizing UV-stabilized polymers and corrosion-resistant
internal seals tested for operational integrity in environments up to 45°C and
90% non-condensing humidity.
