Product Code : SCL-M-11568

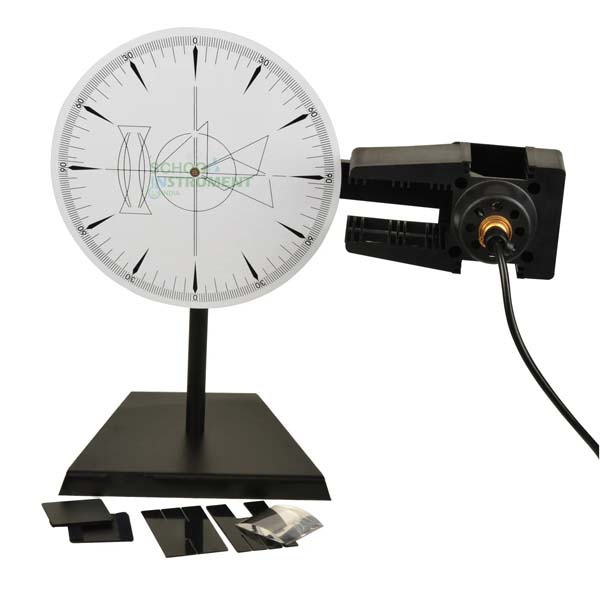

The Hartl Optical Disc
is a precision-engineered apparatus designed for the quantitative analysis of
reflection, refraction, and total internal reflection within Secondary and
University-level physics laboratories. Compliant with standard optical bench methodologies,
this instrument utilizes magnetic-backed acrylic elements and a 360° graduated
rotatable disk to visualize complex ray paths. It serves as a primary tool for
verifying Snell’s Law and Fresnel equations in institutional STEM environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Disk Diameter |
228.6 mm (9.0 inches) |
|
Angular Graduation |
360° Scale (0.5° or 1°
increments) |
|
Material Grade: Lenses |
Optical-grade PMMA (Acrylic)
with Integrated Magnetic Backing |
|
Rotation Mechanism |
Friction-locked 360°
Horizontal Axis |
|
Light Source |
12V / 2A Halogen or LED Ray
Box (Adjustable Arm) |
|
Optical Elements |
6-Piece Set (Prisms,
Bi-Convex, Bi-Concave, Semicircular) |
|
Base Construction |
High-Stability Cast Alloy /
Weighted Polymer |
Key Pedagogical Outcomes
· Graduated
Rotatable Disk: Analyzing Geometric Relationships. Facilitates precise measurement of incident
and refracted angles, enabling students to calculate refractive indices and
analyze angular deviation.
· Magnetic-Backed
Acrylic Models: Evaluating Optical Interfaces. Allows for rapid reconfiguration of ray paths
through various geometries (Bi-convex, Bi-concave, Trapezoidal), supporting the
evaluation of focal length and spherical aberration.
· Multislit
Diaphragm Assembly: Applying Wave Theory. Generates parallel, convergent, or divergent ray patterns,
allowing learners to apply theoretical principles of beam collimation and ray
tracing.
· Adjustable
Ray Box Arm: Creating Experimental Simulations. Enables students to simulate diverse lighting
conditions and investigate the critical angle required for total internal
reflection (TIR).
International Logistics & Compliance
To meet the
requirements of international procurement officers and global tenders, all
units are packed in export-grade seaworthy crating (ISPM-15 compliant) to
ensure structural integrity during maritime or air transit. Each shipment
includes a Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ
Certification, and technical User Manuals provided in English. The apparatus
features a tropicalized design, tested for stable operation in ambient
temperatures up to 45°C and 90% non-condensing humidity, ensuring durability in
diverse climatic zones.
