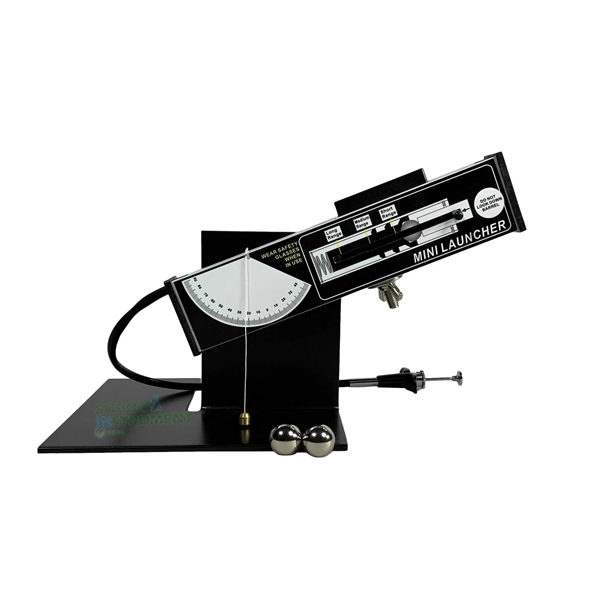

Mini Projectile Launcher Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11609
The Mini Projectile Launcher is a precision-calibrated ballistic instrument engineered for the empirical verification of two-dimensional motion. Designed for Secondary and University-level physics, it facilitates the investigation of range, maximum height, and time-of-flight in accordance with ASTM laboratory safety standards. It features repeatable propulsion settings and integrated angle measurement for rigorous kinematic data acquisition.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-tensile steel springs;
Non-corrosive barrel assembly |
|
Projectile Diameter |
16 mm (Steel Sphere) |
|
Launch Mechanism |
Three-stage spring tension
with magnetic piston centering |
|
Angle Calibration |
Integrated Protractor and
Plumb Line (0? to 90?) |
|
Dimensions (L x W) |
18.5 cm – 30.5 cm x 15 cm |
|
Triggering System |
28 cm Mechanical Cable Release |
Key Pedagogical Outcomes
· Magnetic
Piston Centering: Analyzing Systematic Error. Facilitates "Analysis" of trajectory consistency by
eliminating internal barrel friction and lateral deviations during the launch
phase.
· Three
Repeatable Spring Tensions: Evaluating Initial Velocity. Enables students to "Evaluate" the
relationship between elastic potential energy and projectile range across three
discrete, repeatable settings (1m, 1.5m, and 2m).
· Integrated
Protractor and Plumb Line: Applying Vector Resolution. Supports the "Application" of trigonometric
functions to resolve initial velocity into Vx and Vy
components for accurate landing site prediction.
· Mechanical
Cable Release: Understanding Variable Isolation. Allows learners to "Understand" the necessity
of vibration-free triggering to isolate gravitational and inertial variables
from external mechanical interference.
International Logistics & Compliance
To satisfy the requirements of international procurement
officers and global educational tenders, this apparatus is secured in
export-grade seaworthy crating (ISPM-15 compliant). Documentation includes a
Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ Certification, and
technical User Manuals in English. The unit features a tropicalized design; all
mechanical components are batch-tested for operational integrity and oxidation
resistance in environments up to 45°C and 90% non-condensing humidity.
