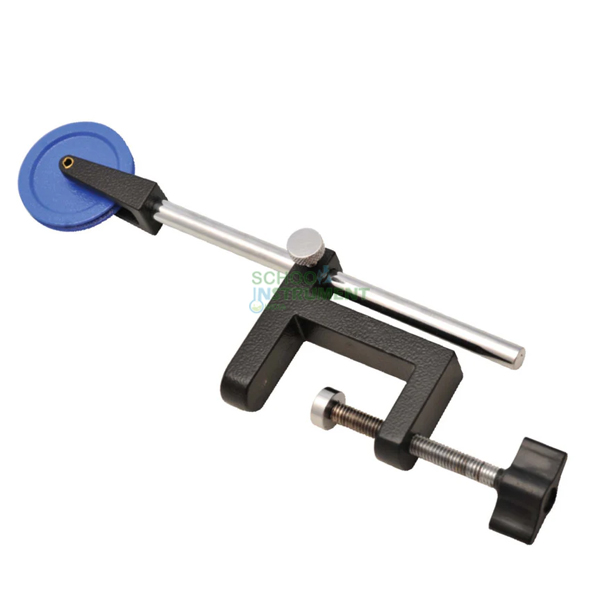

Table Clamp Pulley, ABS Plastic Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11664
The Table-Edge Support
Pulley is a precision mechanical assembly engineered for the empirical analysis
of frictional coefficients, acceleration, and gravitational force. Optimized
for Secondary and University-level physics laboratories, it features a
ruggedized ABS polymer sheave and a calibrated vertical adjustment rod. This
instrument facilitates repeatable data collection in alignment with
ASTM-standardized kinematics modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Density ABS Plastic
Sheave; 1018 Cold-Rolled Steel Rod |
|
Clamp Aperture Range |
Adjustable for table edge
thicknesses up to 53 mm |
|
Pulley Diameter |
50 mm nominal |
|
Support Rod Dimensions |
140 mm (L) x 8 mm (Diameter) |
|
Vertical Displacement Range |
27 mm to 140 mm (Pulley apex
relative to surface) |
|
Locking Mechanism |
Ergonomic threaded knob for
rigid positioning |
|
Rotation Interface |
Low-friction smooth-rotation
bearing surface |
Key Pedagogical Outcomes
· Variable-Height
140 mm Adjustment Rod:
Allows students to establish precise horizontal or inclined planes of force,
facilitating the "Analysis" of vector components in complex pulley
systems.
· 53
mm Wide-Aperture Edge Clamp: Ensures secure, vibration-resistant attachment to
non-standardized laboratory workstations, supporting "Safe Laboratory
Practice" protocols.
· 50
mm Low-Friction ABS Sheave:
Minimizes extraneous energy loss through friction, enabling students to
"Evaluate" the accuracy of theoretical mechanical advantage
calculations (MA).
· 8
mm Diameter Rigid Steel Support: Maintains structural alignment under load, supporting the
"Application" of Newton’s Second Law in multi-mass Atwood machine
configurations.
International Logistics & Compliance
This instrumentation
is processed for global distribution via export-grade seaworthy crating
(ISPM-15 compliant) to protect the structural integrity of the steel
support rods during maritime transit. Each consignment includes a comprehensive
documentation package: the Manufacturer’s Authorization
Form (MAF), Certificate of Conformity, IQ/OQ/PQ documentation, and
technical User Manuals in English. The hardware features a tropicalized design, with corrosion-resistant coatings
tested for sustained operational stability in high-ambient laboratory
environments reaching up to 45°C and 90% non-condensing humidity.
