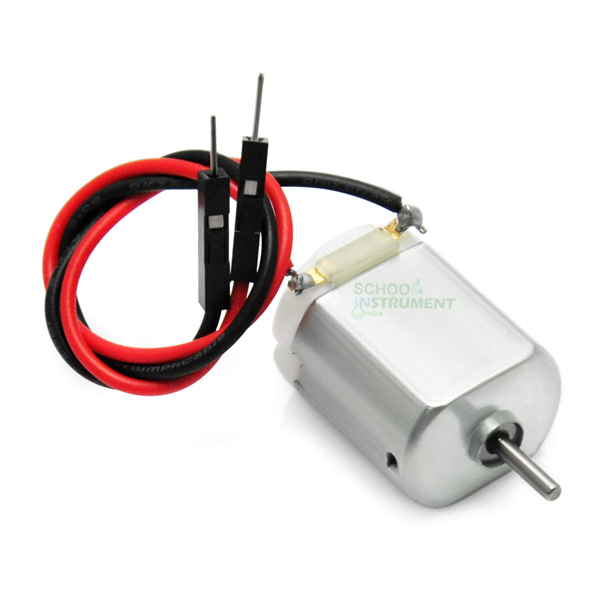

Miniature DC Motor Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11449
Engineered for
high-velocity rotational kinematics, this miniature DC motor facilitates the
evidentiary study of electromagnetic energy conversion. Optimized for Secondary
and Vocational curricula, it supports ASTM-aligned standards for electrical
safety in classroom prototyping. The unit provides calibrated 7000-11000 RPM
performance on 1.5V to 3V DC inputs, enabling precise measurement of torque and
angular velocity.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Ferrite Permanent Magnet;
Enamelled Copper Windings |
|
Operational Voltage |
1.5V to 3.0V DC |
|
Rotational Speed |
7000 – 11000 RPM (Nominal) |
|
Chassis Dimensions |
40mm (L) x 20mm (D) |
|
Drive Shaft Dimensions |
8mm (L) x 2mm (D) |
|
Electrical Interface |
4" (101mm) Pre-soldered
Wire Leads |
Key Pedagogical Outcomes
·
1.5V
- 3V Low-Voltage Input:
Facilitates the "Analysis" of
voltage-to-RPM ratios, allowing students to observe how potential difference
influences electromagnetic field strength and rotational velocity.
·
7000-11000
RPM High-Speed Output:
Supports the "Application" of mechanical work
calculations, enabling students to evaluate centrifugal force and friction in
small-scale engineering models.
·
Pre-soldered
4" Wire Leads: Supports "Execution" of rapid circuit integration,
ensuring high-integrity electrical continuity for students synthesizing series
or parallel motor arrays.
·
8mm
x 2mm Standardized Shaft:
Enables the "Synthesis" of mechanical assemblies,
allowing for the attachment of pulleys, propellers, or gears to demonstrate
work (W = Fd) and energy transfer.
·
Ruggedized
Cylindrical Housing: Enables "Evaluation" of motor longevity under load,
supporting Vocational modules in basic robotics and mechatronics.
International Logistics & Compliance
This component is
configured for high-volume B2B distribution and ministerial-level educational
tenders. Packaging consists of ESD-shielded individual units within
export-grade seaworthy crating (ISPM-15 compliant) to prevent armature
misalignment during maritime transit. Documentation provided includes the
Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical
datasheets in English. The unit features a tropicalized design, with
oxidation-resistant commutator surfaces tested for sustained operation in
environments up to 45°C and 90% Humidity.
